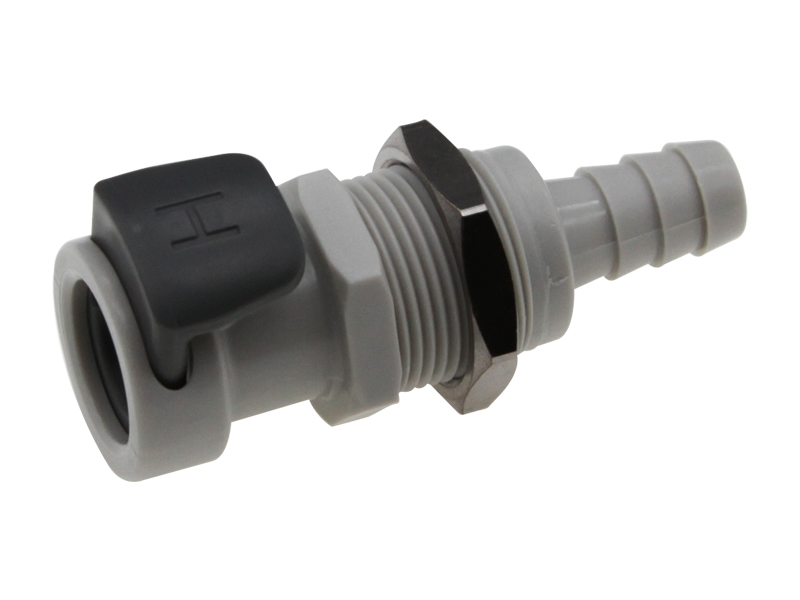

Material :
Acetal (POM)Flow :
5/16 '' SizeSealing Ring :
Buna-N (Nitrile rubber)Color :
White / Beige / greyValve Option :
ValveValve Spring :
316 Stainless SteelInternal Valve Material :
Acetal (POM)Classification：
| Color and Material | Product Name | Operation temperature | O-ring |
 (White) Acetal |
SACV5003B05 | - 40 ° F to 180° F | Buna-N (Nitrile rubber) |
 (Beige) Polypropylene |
SPPV5003E05MALD | - 32 ° F to 160° F | Peroxide Cured EPDM |
 (Grey) Polypropylene |
SPPV5003E05 |
- 32 ° F to 160° F |
Peroxide Cured EPDM |
Panel Mount Dimensions:
| Panel Opening | Max Panel Thickness | Min Panel Thickness | |
| Sockets | See Drawing | 0.5" | 0.05" |
| Plugs | 0.688" | 0.3" | 0.05" |
Product Number Guide Example:
| S | AC | V | 500 | 3 | B | 05 |
|
Socket / Plug |
Material |
Valve |
Flow size |
Body shape |
O-ring |
Connection size |
