Quick Disconnect Couplings(Valved)
Home /Quick Disconnect Couplings(Valved) /

SACV2002B04 IN-LINE HOSE BARB VALVED SOCKET 1/8" FLOW RATE 1/4" TUBE ID

POM
Acetal (POM)
Polypropylene (PP)
Polypropylene (PP)
Chrome brass (CB)

SACV2002B04 IN-LINE HOSE BARB VALVED SOCKET 1/8" FLOW RATE 1/4" TUBE ID

  • Material :

    Acetal (POM)

  • Flow :

    1/4 '' Size

  • Sealing Ring :

    Buna-N (Nitrile rubber)

  • Color :

    White / Beige /grey / metallochrome

  • Valve Option :

    Valve

  • Valve Spring :

    316 Stainless Steel

  • Internal Valve Material :

    Acetal (POM)
Inquire Now
The material of the finger lock button in this series of products is stainless steel. At a working pressure of 8.3 bar, it has few leakage points, short assembly time, fast installation, reliable connection, and can be interchanged with the 200CB series.

Classification：



Color and Material Product Name Operation temperature O-ring

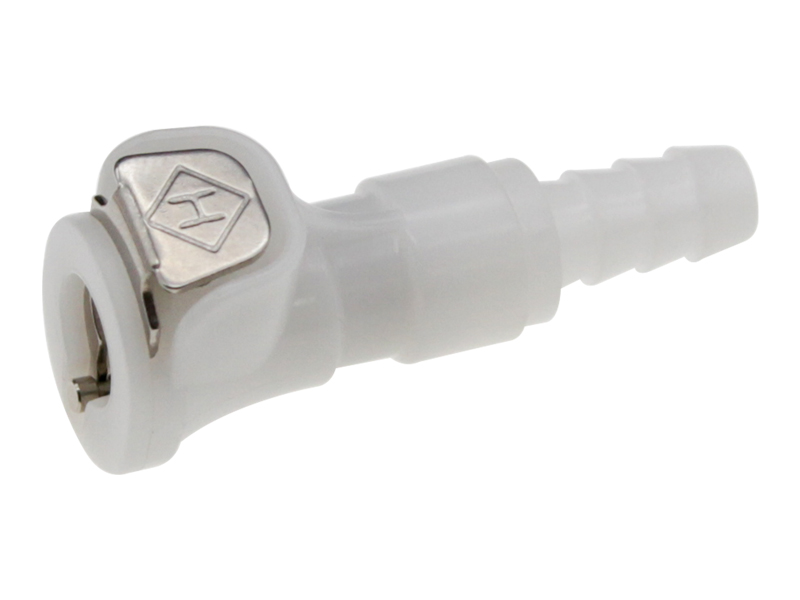

  (White) Acetal  SACV2002B04 - 40 ° F to 180° F Buna-N (Nitrile rubber)

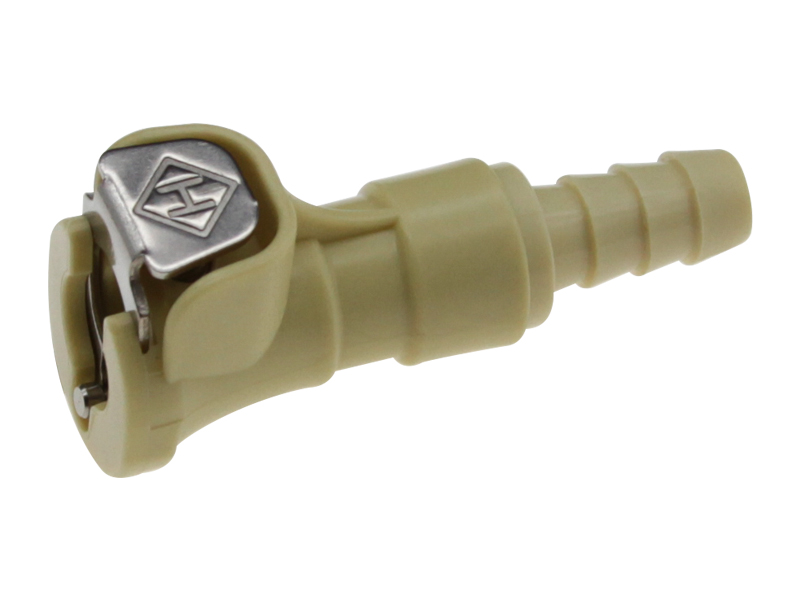

  (Beige) Polypropylene  SPPV2002E04MALD - 32 ° F to 160° F Peroxide Cured EPDM

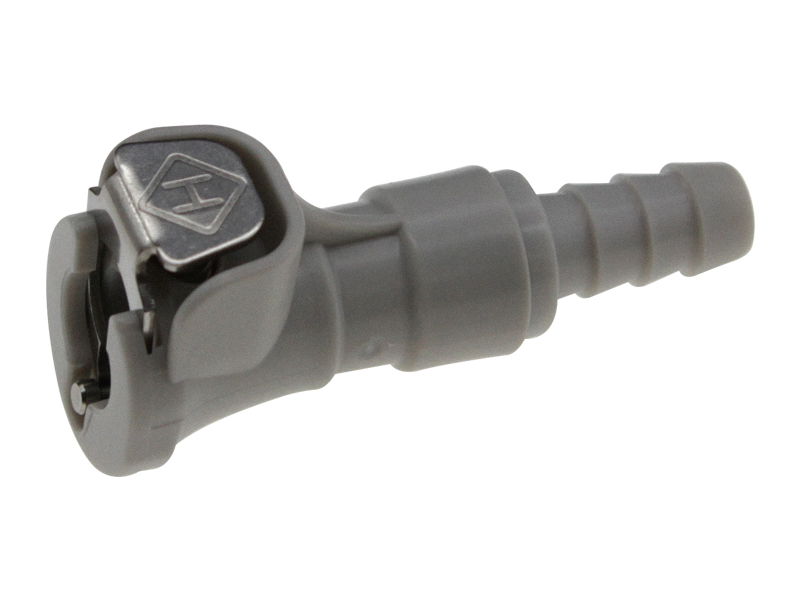

  (Grey) Polypropylene  SPPV2002E04 - 32 ° F to 160° F Peroxide Cured EPDM

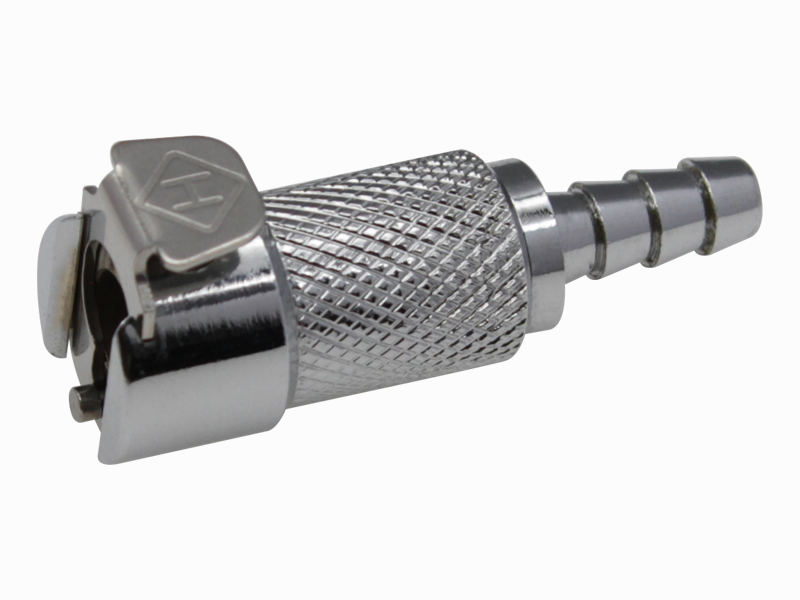

 (Metallochrome) Chrome brass / Stainless steel SCBV2002B04 / SSSV2002B04 - 40 ° F to 180° F Buna-N (Nitrile rubber)

Panel Mount Dimensions:



  Panel Opening  Max Panel Thickness Min Panel Thickness
Sockets See Drawing 0.5" 0.05"
Plugs 0.5" 0.3" 0.05"

 Product Number Guide Example:



S AC V 200 2 B 04

Socket / Plug

Material

Valve

 Flow size

Body shape

O-ring

Connection size
