Quick Disconnect Couplings (Non-Valved)
Home /Quick Disconnect Couplings (Non-Valved) /

SACR5009ZM8 IN-LINE PTF NON-VALVED SOCKET PLASTIC LATCH 1/4" FLOW RATE 8MM TUBE OD

Acetal (POM)
Polypropylene (PP)
Polypropylene (PP)

SACR5009ZM8 IN-LINE PTF NON-VALVED SOCKET PLASTIC LATCH 1/4" FLOW RATE 8MM TUBE OD

  • Material :

    Acetal (POM)

  • Flow :

    M8= 8mm Size

  • Sealing Ring :

    No

  • Color :

    White / Beige / grey

  • Valve Option :

    No Valve
Inquire Now
This series of products refers to the lock button material being acetal. At a working pressure of 8.3 bar, it has fewer leakage points, shorter assembly time, faster installation, can prevent accidental disconnection, and no external metal leakage.

Classification：



Color and Material Product Name Operation temperature O-ring
  (White) Acetal  SACR5009ZM8 - 40 ° F to 180° F Buna-N (Nitrile rubber)

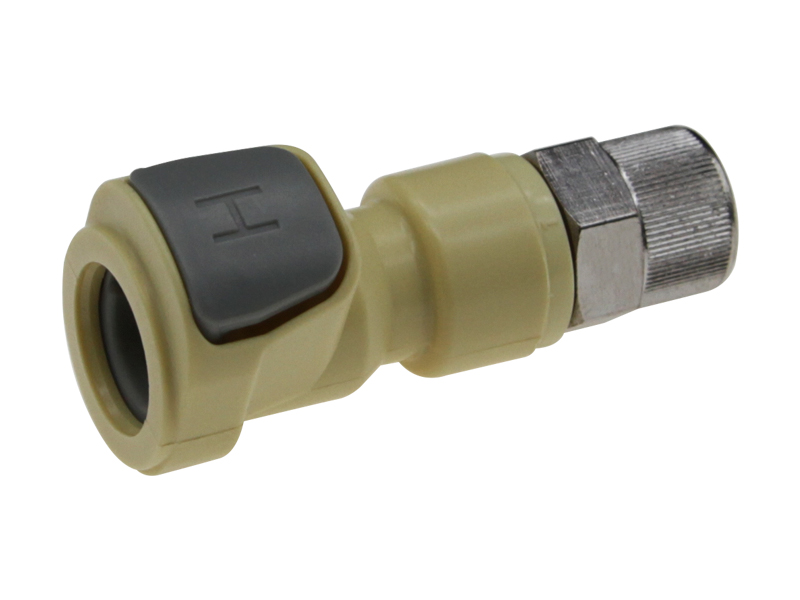

  (Beige) Polypropylene  SPPR5009ZM8MALD - 32 ° F to 160° F Peroxide Cured EPDM

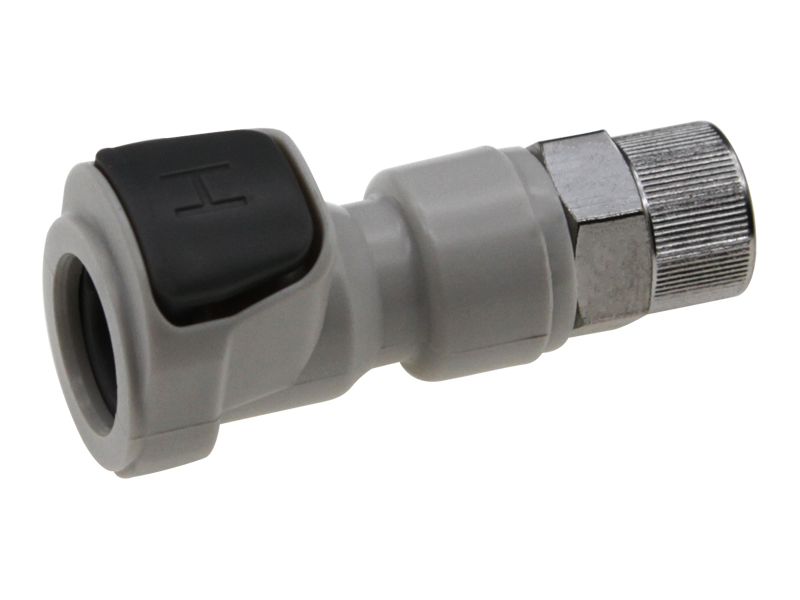

  (Grey) Polypropylene  SPPR5009ZM8
 - 32 ° F to 160° F
 Peroxide Cured EPDM

Panel Mount Dimensions:



  Panel Opening  Max Panel Thickness Min Panel Thickness
Sockets See Drawing 0.5" 0.05"
Plugs 0.688" 0.3" 0.05"

Product Number Guide Example:



S AC R 500 9 Z M8

Socket / Plug

Material

No Valve

 Flow size

Body shape

No O-ring

Connection size
