Material :
Acetal (POM)Flow :
M10= 10mm SizeSealing Ring :
NoColor :
White / Beige / greyValve Option :
No ValveClassification：
| Color and Material | Product Name | Operation temperature | O-ring |

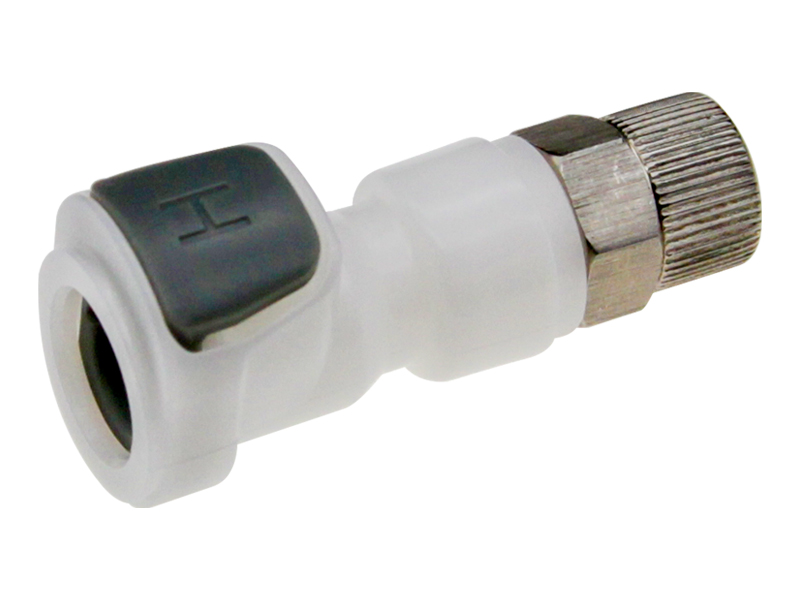

 (White) Acetal |
SACR5009ZM10 | - 40 ° F to 180° F | Buna-N (Nitrile rubber) |

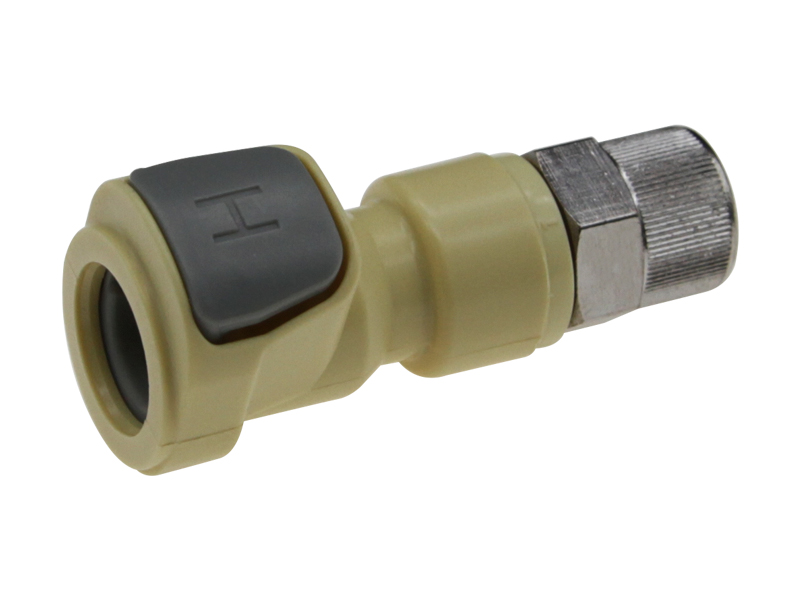

 (Beige) Polypropylene |
SPPR5009ZM10MALD | - 32 ° F to 160° F | Peroxide Cured EPDM |
 (Grey) Polypropylene |
SPPR5009ZM10 |
- 32 ° F to 160° F |
Peroxide Cured EPDM |
Panel Mount Dimensions:
| Panel Opening | Max Panel Thickness | Min Panel Thickness | |
| Sockets | See Drawing | 0.5" | 0.05" |
| Plugs | 0.688" | 0.3" | 0.05" |
Product Number Guide Example:
| S | AC | R | 500 | 9 | Z | M10 |
|
Socket / Plug |
Material |
No Valve |
Flow size |
Body shape |
No O-ring |
Connection size |
