Material :
Acetal (POM)Flow :
5/32" OD .10" ID SizeSealing Ring :
NoColor :
White / Beige /grey / metallochromeValve Option :
No ValveClassification：
| Color and Material | Product Name | Operation temperature | O-ring |
 (White) Acetal |
SACR2009Z025 | - 40 ° F to 180° F | Buna-N (Nitrile rubber) |

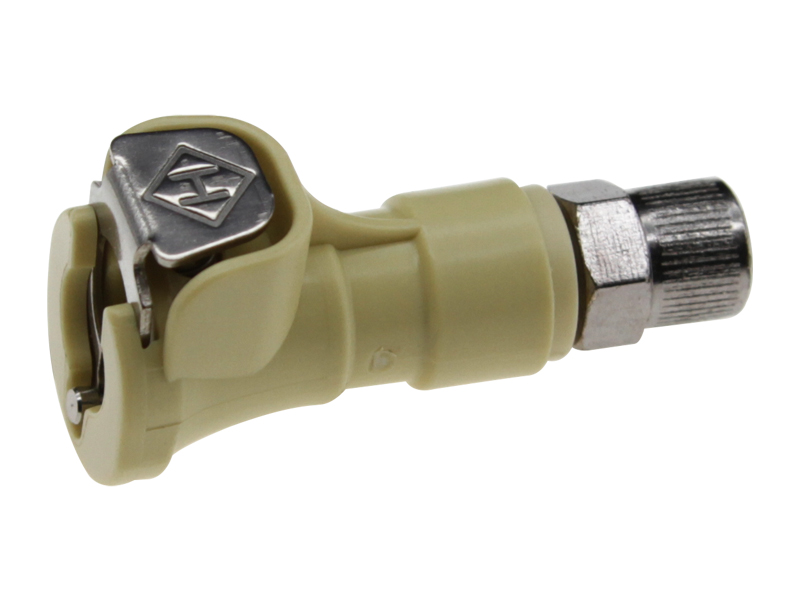

 (Beige) Polypropylene |
SPPR2009Z025MALD | - 32 ° F to 160° F | Peroxide Cured EPDM |

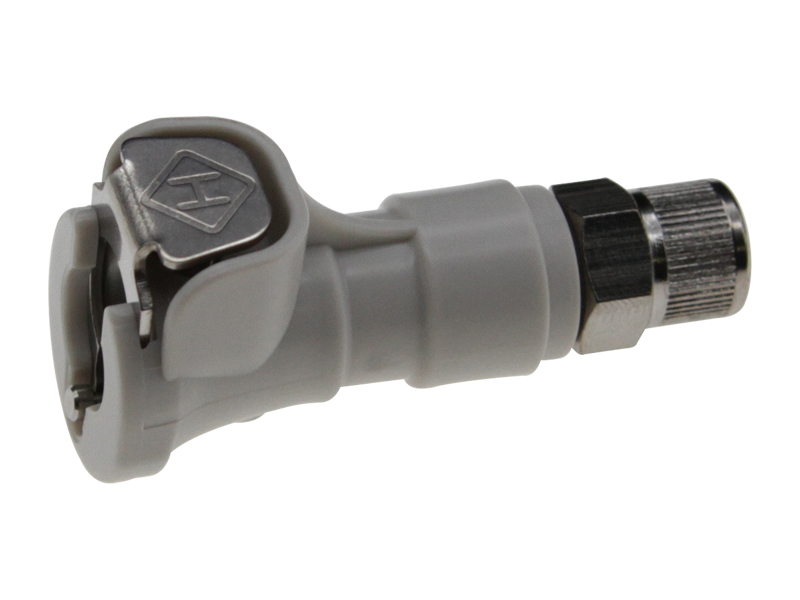

 (Grey) Polypropylene |
SPPR2009Z025 | - 32 ° F to 160° F | Peroxide Cured EPDM |

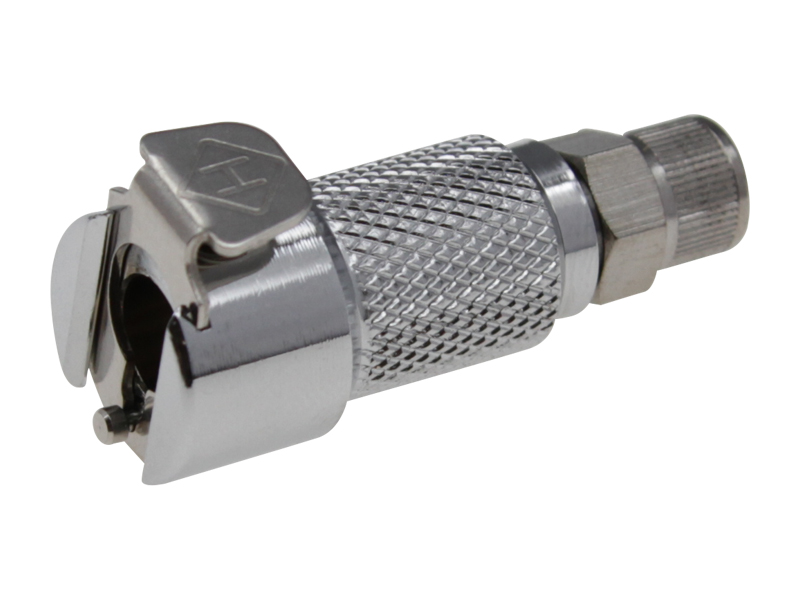

 (Metallochrome) Chrome brass / Stainless steel |
SCBR2009Z025 / SSSR2009Z025 | - 40 ° F to 180° F | Buna-N (Nitrile rubber) |
Panel Mount Dimensions:
| Panel Opening | Max Panel Thickness | Min Panel Thickness | |
| Sockets | See Drawing | 0.5" | 0.05" |
| Plugs | 0.5" | 0.3" | 0.05" |
Product Number Guide Example:
| S | AC | R | 200 | 9 | Z | 025 |
|
Socket / Plug |
Material |
No Valve |
Flow size |
Body shape |
No O-ring |
Connection size |
