Material :
Acetal (POM)Flow :
1/4 '' SizeSealing Ring :
Buna-N (Nitrile rubber)Color :
White / Beige /grey / metallochromeValve Option :
ValveValve Spring :
316 Stainless SteelInternal Valve Material :
Acetal (POM)Classification：
| Color and Material | Product Name | Operation Temperature | O-ring |

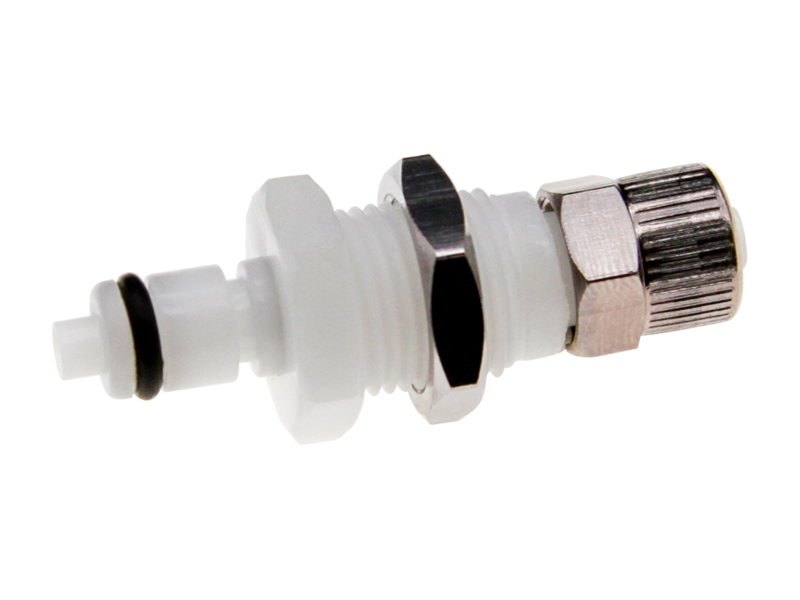

 (White) Acetal |
PACV2008B04 | - 40 ° F to 180° F | Buna-N (Nitrile rubber) |

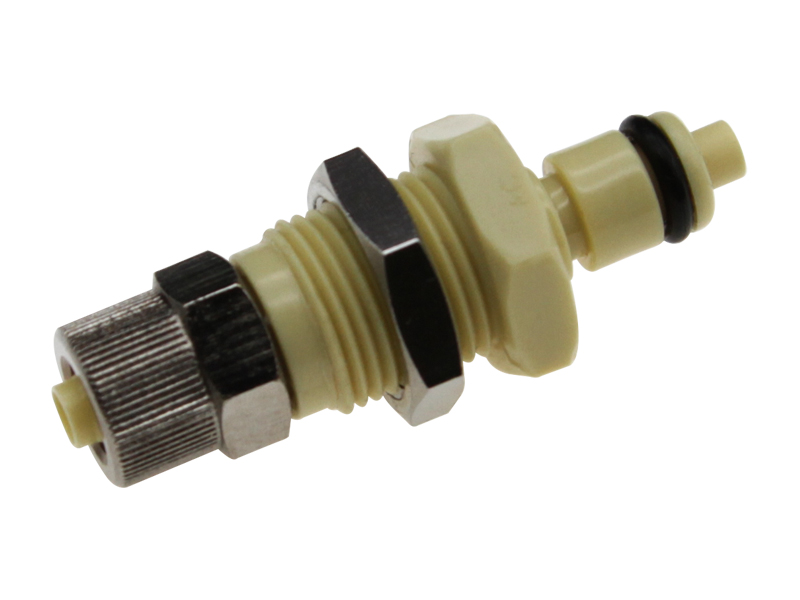

 (Beige) Polypropylene |
PPPV2008E04MALD | - 32 ° F to 160° F | Peroxide Cured EPDM |
 (Grey) Polypropylene |
PPPV2008E04 | - 32 ° F to 160° F | Peroxide Cured EPDM |

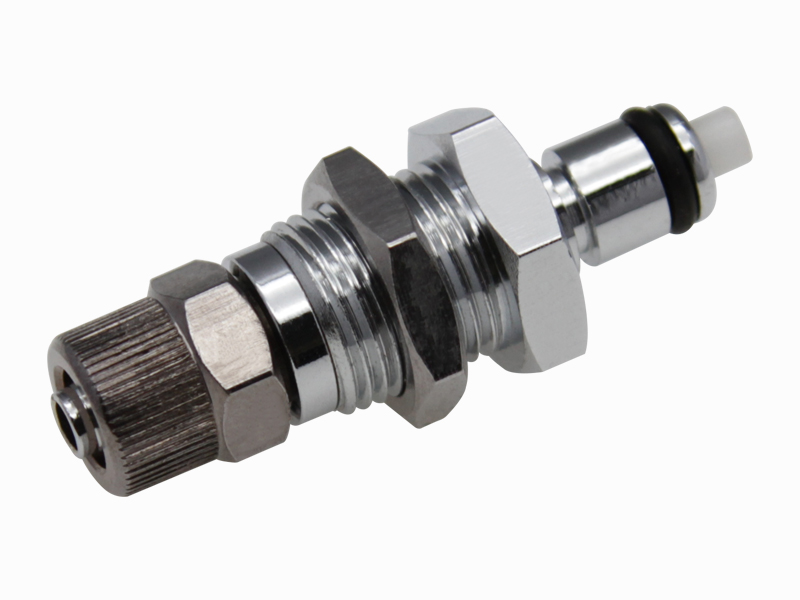

 (Metallochrome) Chrome brass / Stainless steel |
PCBV2008B04 / PSSV2008B04 | - 40 ° F to 180° F | Buna-N (Nitrile rubber) |
Panel Mount Dimensions:
| Panel Opening | Max Panel Thickness | Min Panel Thickness | |
| Sockets | See Drawing | 0.5" | 0.05" |
| Plugs | 0.5" | 0.3" | 0.05" |
Product Number Guide Example:
| P | AC | V | 200 | 8 | B | 04 |
|
Socket / Plug |
Material |
Valve |
Flow size |
Body shape |
O-ring |
Connection size |
