Quick Disconnect Couplings (Non-Valved)
Home /Quick Disconnect Couplings (Non-Valved) /

PACR5001B06 MALE THREAD NON-VALVED PLUG PLASTIC LATCH 1/4" FLOW RATE 3/8" NPT

Acetal (POM)
Polypropylene (PP)
Polypropylene (PP)

PACR5001B06 MALE THREAD NON-VALVED PLUG PLASTIC LATCH 1/4" FLOW RATE 3/8" NPT

  • Material :

    Acetal (POM)

  • Flow :

    3/8 '' Size

  • Sealing Ring :

    Buna-N (Nitrile rubber)

  • Color :

    White / Beige / grey

  • Valve Option :

    No Valve
Inquire Now
This series of products refers to the lock button material being acetal. At a working pressure of 8.3 bar, it has fewer leakage points, shorter assembly time, faster installation, can prevent accidental disconnection, and no external metal leakage.

Classification：



Color and Material Product Name Operation temperature O-ring

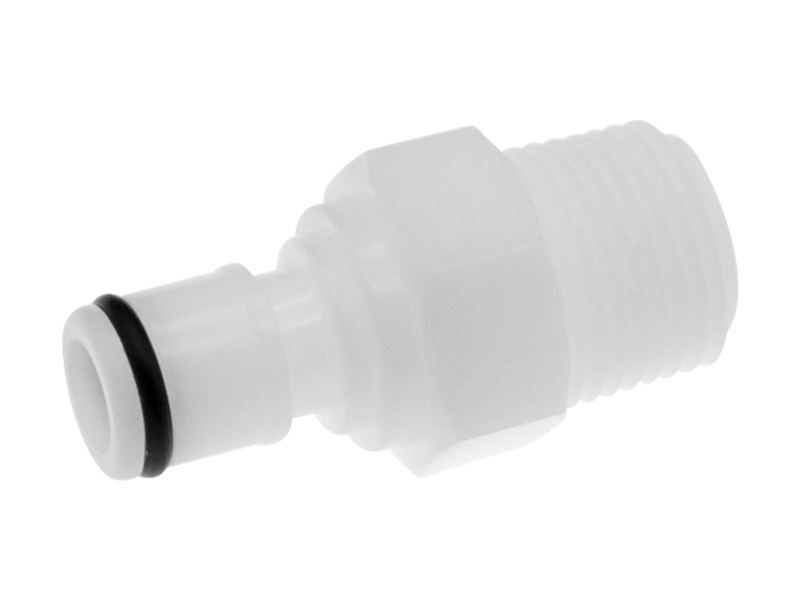

  (White) Acetal  PACR5001B06 - 40 ° F to 180° F Buna-N (Nitrile rubber)

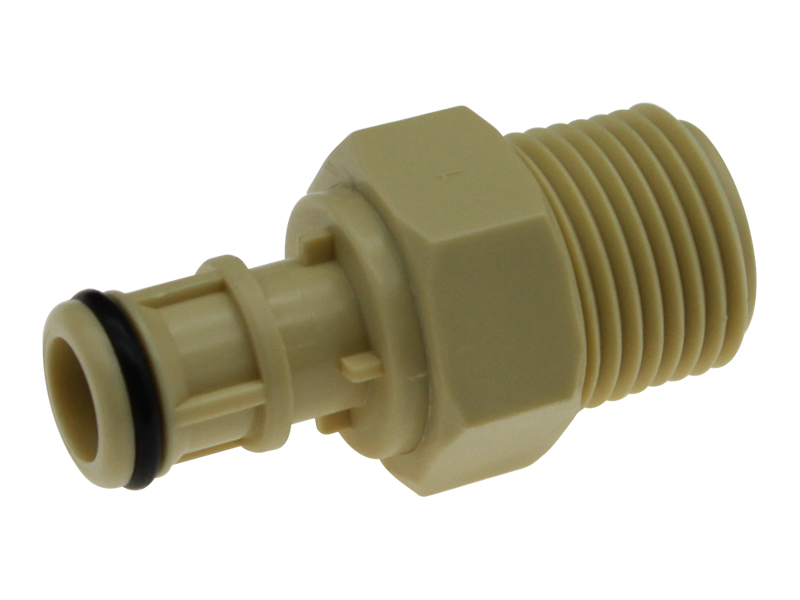

  (Beige) Polypropylene  PPPR5001E06MALD - 32 ° F to 160° F Peroxide Cured EPDM

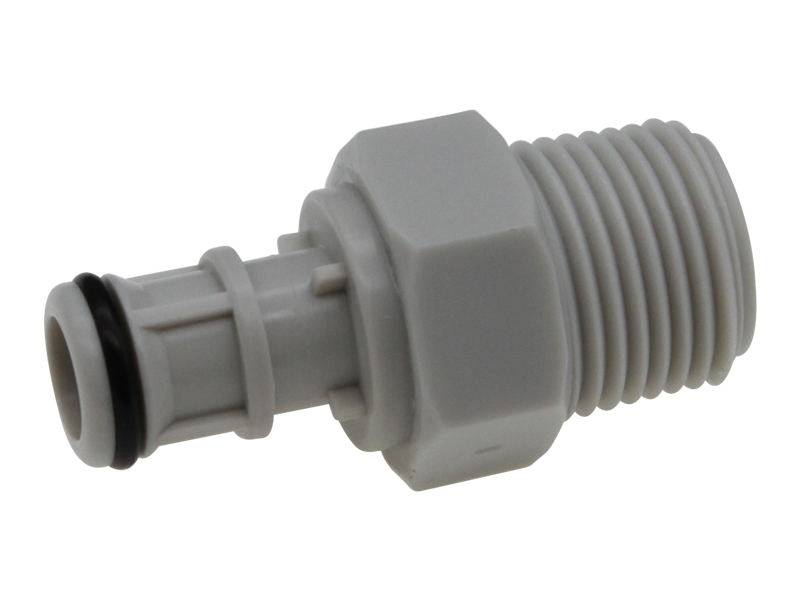

  (Grey) Polypropylene  PPPR5001E06
 - 32 ° F to 160° F
 Peroxide Cured EPDM

Panel Mount Dimensions:



  Panel Opening  Max Panel Thickness Min Panel Thickness
Sockets See Drawing 0.5" 0.05"
Plugs 0.688" 0.3" 0.05"

Product Number Guide Example:



P AC R 500 1 B 06

Socket / Plug

Material

No Valve

 Flow size

Body shape

O-ring

Connection size
